PIC SOLUTION
PIC Solution SAS was founded in France in 2004 as a company specializing in supercritical fluid chromatography. The company is based in Avignon, France where the analytical and preparative SFC systems are manufactured. Equipment ranges from 10 ml/min analytical SFC units to preparative SFC units with flow rates up to 1000 ml/min. More recently, PIC Solution has started a range of SFE equipment, mainly focused on pharmaceutical and nutraceutical applications.
Analytical SFC Systems.
The SFC-PICLab Analytic is a versatile analytical SFC system. The intuitive interface of the user-friendly software allows easy set-up of analytical methods with both mobile phase and flow gradients. Automated screening for rapid method development with integrated column and co-solvent selection is programmed in moments. Both UV and quadrupole mass spectrometric detection are available.

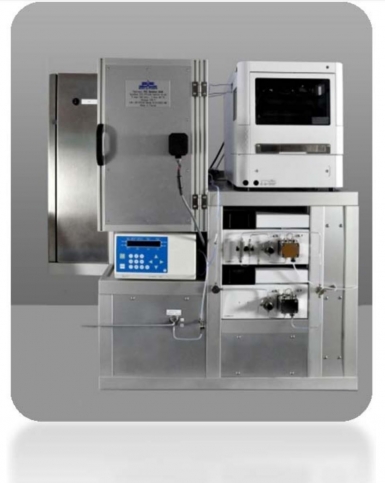

SFC-PICLab Analytic
Software for the SFC-PICLab Analytic system has been designed specifically to ease the development of separation methods. Screening sequences can be set up in moments by selection from 10 columns and 6 modifiers together with a generic screening method and information on the samples. Results can be selected using specific samples or separation conditions (column, mobile phase) and up to 60 chromatograms may be displayed on-screen.
Specifications
Maximum Flow Rate 10 ml/min
Maximum co-solvent flow rate 10 ml/min
Co-solvent selection Up to 6 solvents
Max Pressure 350 bar
Column Size 4.6 and 10 mm id
Column Selection Up to 10 columns
Temperature 15 to 60°C
Injection Autosampler (60 vials)
Detection DAD UV (4 simultaneous wavelengths)
External input for 2nd detector
